COMPONENTES DE LAS BOMBAS INSERTABLES CON ANCLAJE SUPERIOR Y BARRIL DE PARED GRUESA ( RHA )
Tabla
| DIÁMETRO DE TUBING | 2 3/8" | 2 7/8" | 2 7/8" | 3 1/2" | |
| BOMBA | 20-125 | 25-150 | 25-175 | 30-225 | |
| B12 | Barril de pared gruesa | B12-125 | B12-150 | B12-175 | B12-225 |
| B21 | Conector sup. vástago | B21-20 | B21-25 | B21-25 | B21-30 |
| B22 | Conector válvula fija | B22-20 | B22-25 | B22-25 | B22-30 |
| C12 | Jaula superior pistón | C12-125 | C12-150-25 | C12-175 | C12-225 |
| C13 | Jaula inferior pistón | C13-125 | C13-150 | C13-175 | C13-225 |
| C14 | Jaula de barril cerrada | C14-20 | C14-25 | C14-25 | C14-30 |
| C31 | Cupla de extensión | C31-125 | C31-150 | C31-175 | C31-225 |
| G11 | Guía de vástago | G11-20 | G11-25 | G11-25 | G11-30 |
| N11 | Niple asiento de copas | N11-20 | N11-25 | N11-25 | N11-30 |
| P12 | Tapón asiento | P12-125 | P12-150 | P12-175 | P12-225 |
| P21 | Pistón | P21-125 | P21-150 | P21-175 | P21-225 |
| R11 | Vástago | R11-20 | R11-25 | R11-25 | R11-30 |
| S11 | Mandril de anclaje | S11-20 | S11-25 | S11-25 | S11-30 |
| S12 | Copa de anclaje | S12-20 | S12-25 | S12-25 | S12-30 |
| S13 | Separador de copas | S13-20 | S13-25 | S13-25 | S13-30 |
| S14 | Tuerca de anclaje | S14-20 | S14-25 | S14-25 | S14-30 |
| S15 | Conector anclaje copa | S15-20 | S15-25 | S15-25 | S15-30 |
| V11 | Válvula (viajera) | V11-125 | V11-150 | V11-175 | V11-225 |
| (estacionaria) | V11-175 | V11-225 | V11-225 | V11-250 | |
| Opción anclaje mecánico: | |||||
| N14 | Niple anclaje mec.sup. | N14-20 | N14-25 | N14-25 | N14-30 |
| S21 | Anclaje mecánico sup. | S21-20 | S21-25 | S21-25 | S21-30 |

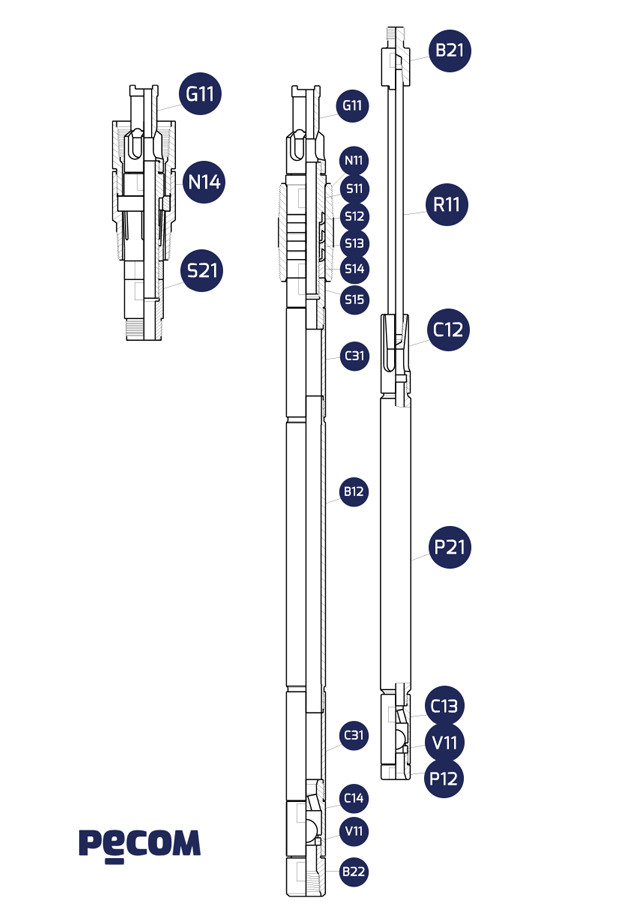

Figura
